Continental Flex Fuel Sensor Wiring

In checking my wiring work with a multimeter before actually plugging the molex to the flex fuel sensor with the ignition key on but without the engine started and running i confirmed 12 and ground but was surprised to see 12 also coming out of the wire connected to deutsch pin 9 digital in 3 flex fuel sensor hz.

Continental flex fuel sensor wiring. Maxxecu provide direct support for this sensor. In order to adjust the ignition. An connections and electrical connectors are not included and must be purchased separately an6 and an8. Product specs and features.

The signal circuit carries the ethanol percentage via a frequency signal. Measuring ethanol content and fuel temperature. Plug and pins only flex fuel composition sensor. Flex fuel composition sensor.

In stock ready to ship. The sensor is located in the return from the regulator. Modifying the fuel system on your car can be extremely dangerous. The low value on the left represents the adjustment to the.

Continental flex fuel sensor instructions 1. The three wires provide a ground circuit a power source and a signal output to the ecm. Mistakes can cause fuel leaks or other issues which can lead to serious injury or death. By installing this product or having it installed by.

Followed the holley instructions on the v4 efi software instructions youtube video put out by holley on the subject. For standard gm continental flex sensors these values are 50 and 150. Trying to get my continental flex fuel sensor working on my terminator x. Vitesco technologies offers intelligent electronic solutions for both automatic and hybrid transmissions delivering fuel efficiency and comfort.

Fuel multiplier this is the additional fuel that should be added as ethanol content increases. The continental flex fuel sensor measures the ethanol gasoline ratio of the fuel being used in a flexible fuel vehicle. Sensor frequency the minimum and maximum frequency of the sensor that represent 0 and 100 ethanol respectively. Flexible fuel vehicles can be operated with a blend of ethanol and gasoline up to 85 percent ethanol.

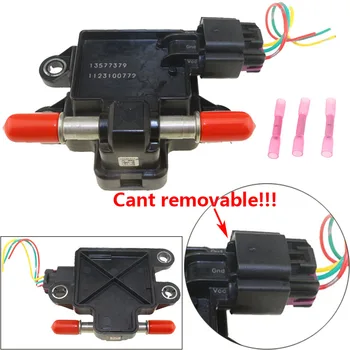

Ethanol sensors mounted in the vehicle s fuel system preferably on the return line. Showing a low err on the gauge panel and the fuel flow multiplier isn t making adjustments. The power source is battery positive voltage and the ground circuit connects to an engine ground. The flex fuel sensor has a three wire electrical harness connector.
